I'm exploring the line between hardware and software by creating a series of demos within a minimal, free and open source environment. These demos span from blinking an LED to implementing a toy operating system. The goal is to minimize parts of the system that we take for granted and gain a better understanding of computers and operating systems.

What is baremetal?

In the non-embedded world, when you compile and link a C program into an executable you are doing so with the intention of running it within a specific operating system. When you compile baremetal or -freestanding you are telling the compiler that you intend to run this without relying on an operating system. This could be used, for example, to write an operating system. Alternatively it can be used to access the hardware of a system directly on an embedded system. Doing so sacrifices higher level luxuries such as memory management, standard IO, thread/process control, etc. Because of this, sometimes it makes sense to run on a type of minimal OS optimized for embedded, e.g. a real time operating system or RTOS.

When you use a commercial development platform, you will likely be provided with a cross compiling toolchain and possibly an RTOS. For an example see freedom-e-sdk. Alternatively, there are also attempts to make small, but hardware agonistic RTOS see zephyr.

What is RISC-V?

RISC-V is an open alternative to ARM or x86.


RISC-V (pronounced "risk-five") is an open standard instruction set architecture (ISA) based on established reduced instruction set computer (RISC) principles. Unlike most other ISA designs, the RISC-V ISA is provided under open source licenses that do not require fees to use.

What is Renode?

Renode is a simulator designed for embedded firmware. What sets it apart is the goal of not only emulating CPUs and SOCs, but also entire boards with peripherals such as ethernet and even multi-node networks of devices.

Alternatives such as QEMU aren't as optimized for the embedded space.

An emulator that you might use for playing video game ROMs is specialized for a single platform. For example, in an emulator cpu, graphics chips, audio, memory-map, etc are fixed and optimized. Renode on the other hand configures each platform with a config file.

Source code

To get started you will need to clone the repository. This includes all of the examples as well as the source for Renode simulator and GCC RISC-V toolchain.

Renode and GCC are linked via git submodule so if you use --recursive you can clone everything in one shot.

git clone --recursive

Toolchain compilation

Technically you could try to find these pre-compiled from your distro or elsewhere, but I suggest compiling from source to ensure we have matching versions and build options.

There are some compilation prerequisites and gotchas. If my hints don't help, just refer to the official project documentation for each.


To ease the burden on my own memory, I have added a Makefile to capture the various build options for the toolchains. If you have all of the build requirements already installed, building both can be as simple as:

$ cd baremetal-riscv-renode
$ make toolchains

Running make toolchains should usually be enough to let you know what you are missing. I have included some hints below, check the comments as well as different distros may have different packages.

Build requirement hints

Below are my hints for which packages to install, this can be different depending on the distribution. I've also included links to the official guides for getting unstuck.


gawk texinfo bison flex libncurses5-dev libncursesw5-dev

The package libncurses5-dev* provides headers for ncurses, and texinfo provides makeinfo.


Mono provides the runtime and C# compiler required for Renode. Installing it can be tricky on some distros and having a mono that is incomplete or outdated can lead to hard to understand errors. Make sure your whole system is up-to-date if you run into issues compiling Renode.

Everything worked fine using the mono package from extra.
Do not use the mono from standard repos. Follow the instructions for mono-complete here
automake autoconf libtool g++ coreutils policykit-1 libgtk2.0-dev screen uml-utilities gtk-sharp2 python3

The package coreutils provides realpath on Debian.

Activating the toolchains

Beyond here, we assume both renode and riscv-gcc are on your PATH. To accomplish this, you can source this activation script.

$ source

Blinking a virtual LED

To verify and get familiar with the tools we'll start off with the "Hello, World" of hardware projects: blinking an LED.

Blinking a virtual "LED" involves a few steps:

  1. Build image from source code
  2. Launch the hardware simulator configured by the platform (repl) file
  3. Load the image into RAM of the simulator

Just get it running

First open up the project folder:

$ cd 1_blinky

Then following command will handle all steps 1-3, we'll break this down later:

$ make launch

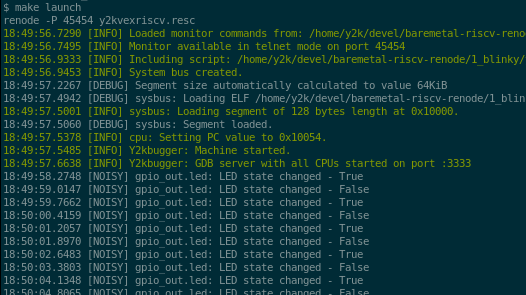

If everything went correctly, you should see something like this:

blinky demo running

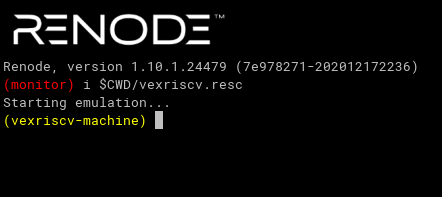

You should have also noticed the monitor window open up. This is used to control the running renode machine; the ? command will list the rest. The tab completion is also very helpful.

renode monitor

Quit using q or quit:

(vexriscv-machine) quit

Alternatively you can kill renode using CTRL + C in the terminal that you launched it from.

Hardware configuration

The hardware to will be simulated is defined using a renode specific platform description format [3]


mem: Memory.MappedMemory @ sysbus 0x0
    size: 0x00040000

cpu: CPU.VexRiscv @ sysbus

gpio_out: GPIOPort.LiteX_GPIO @ sysbus 0x60000800
    type: Type.Out
    0 -> led0@0
    1 -> led1@0

led0 : Miscellaneous.LED @ gpio_out 0
led1 : Miscellaneous.LED @ gpio_out 1

I like this because we can make a very minimal hardware configuration, free from any vendor specific complexity. Besides the cpu and memory, we have a general purpose input output (GPIO) register mapped to memory location 0x60000800. The -> makes a connection from the GPIO pins to the LEDs. I don't exactly know why we need both 0 -> led0@0 and @ gpio_out 0 as it seems redundant; if anyone knows, please let me know. You'll also commonly see -> used for connecting interrupts.

To toggle the LED we will need to write a driver that knows how to control the GPIO by writing to it's register.

Blinky source code

This initial program is written exclusively in RISC-V assembly [4] this is simple enough that every instruction that gets executed can be traced to this source file.

The code to drive this GPIO device is dead simple, you just need to write data to the memory location that maps to the GPIO pins.

Note that the platform specifies the mapping of 0x60000800 to the GPIO register.


.equ LED, 0x60000800
.equ DELAY_COUNT, 9000000

.section .text
.global _start
        li a5, LED
        li a4, LED_STATE_INITIAL
        li a6, LED_STATE_TOGGLE_MASK
        sw a4, 0x0(a5)
        li a0, DELAY_COUNT      # reset counter
        addi a0, a0, -1         # count down
        bnez a0, delay_loop
        lw a4, 0x0(a5)          # read in old led state
        xor a4, a4, a6          # toggle led state word
        sw a4, 0x0(a5)          # write new state
        jump loop, t0

Building an elf binary using gcc

GCC will build an ELF binary based on our assembly source code. This binary is the ROM image and Renode is the emulator.

By default, gcc outputs a format called ELF. This format is understood and loaded by the OS, i.e. linux,. Renode also has the ability to understand ELF files and will load the sections into memory and put the program counter at the right spot to start executing [1].

riscv32-unknown-elf-gcc baremetal.s baremetal.c -ggdb -O0 -o image -ffreestanding -nostdlib
gnu compiler. This compiles, assembles, and links input source code. This is the special cross compiling variant that we built earlier which runs on your host architecture (e.g. x86), but outputs binaries for riscv32.
Assemble source file.
-ggdb Turn on debugging symbols so that gdb can reference memory locations by name.
-O Sets the optimization level, 0 for off
-o image Name of the output ELF binary
-ffreestanding don't use or require main. Don't assume we have an operating system.
-nostdlib don't rely on c standard libraries being available.

Interactively Debugging Renode

Pause and step though code that is running on the simulator.

Attaching the GNU Debugger

After launching, you may attach GDB using make debug. This connects to the GDB server already running within Renode. It uses a GDB script to store default configuration, such as breaking execution and starting the text user interface or TUI, which shows source code alongside the disassembly.

$ make launch
$ make debug

If you are familiar with GDB you know the power of setting breakpoint, inspecting stacks, and much much more.

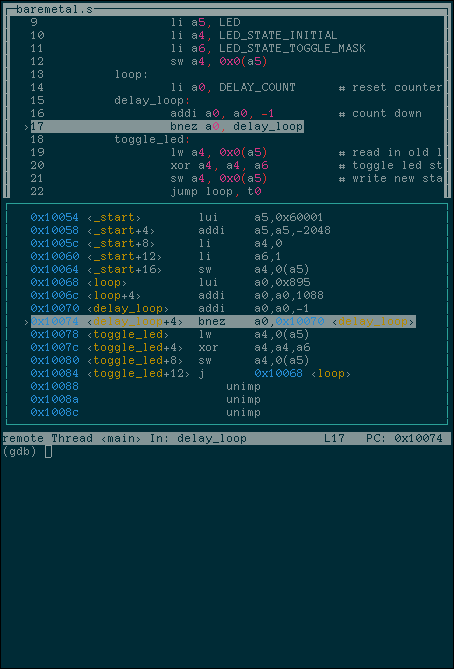

gdb tui

GDB Text User Interface (TUI)

Useful GDB scenarios

There are a couple simple commands that I find to be useful when exploring baremetal programming.

Step a single instruction

Type S I Enter

(gdb) si
(gdb) █

To repeat the last command, just repeatedly hit Enter. This makes it easy to single step through the program.

You will notice that you get stuck in the delay loop, you would have to hit Enter 9,000,000 times to make it though that delay. This is not a good way to add delays since it uses 100% of the CPU. If we were building an operating system, we could utilize a hardware timer and allow programs to request sleeps through an API. During the sleep the OS could go about running other processes, and then wake up the sleeping process at the appropriate time.

Continue normal execution

(gdb) c

Break normal execution

Send a keyboard interrupt, e.g. CTRL + C

(gdb) c

Program received signal SIGTRAP, Trace/breakpoint trap.
delay_loop () at baremetal.s:13
(gdb) █

Set a breakpoint

You can set a breakpoint at a line or symbol. Tab completion should work here to display available symbols. So B Space T Tab Enter

(gdb) b toggle_led
Breakpoint 1 at 0x10074: file baremetal.s, line 16.
(gdb) c

Breakpoint 1, toggle_led () at baremetal.s:16
(gdb) █

Read Registers

You can dump all registers,

(gdb) info registers
    ra             0x0      0x0
    fp             0x0      0x0
    s1             0x0      0
    a0             0x24648f 2385039
    t4             0x0      0
    t5             0x0      0
    t6             0x0      0
    pc             0x1006c  0x1006c <delay_loop>

or you can print a specific one:

(gdb) p $pc
$5 = (void (*)()) 0x10074 <toggle_led>
(gdb) p $a4
$6 = 2

Setting a register

You can mutate a register value and continue on:

(gdb) set $pc=delay_loop
(gdb) c

Changing the bitmask for blinky

Let's do something fun and prove we can modify a program's state after breaking.

If we just run the blinky example, note that we are blinking led0:

15:09:23.7671 [NOISY] gpio_out.led0: LED state changed to True
15:09:24.0805 [NOISY] gpio_out.led0: LED state changed to False
15:09:24.3872 [NOISY] gpio_out.led0: LED state changed to True
15:09:24.7525 [NOISY] gpio_out.led0: LED state changed to False

Change the bitmask:

(gdb) set $a6=0b10
(gdb) c

Now we are blinking led1 instead of led0:

15:09:42.5007 [NOISY] gpio_out.led1: LED state changed to True
15:09:42.7653 [NOISY] gpio_out.led1: LED state changed to False
15:09:43.0602 [NOISY] gpio_out.led1: LED state changed to True
15:09:43.3263 [NOISY] gpio_out.led1: LED state changed to False

Miro Samek and the modern embedded course series

I am inspired by Miro Samek. He does a great introduction to many embedded programming concepts and I want to share that in a way that we don't need to have a real board.

Check out his course here:



The computer has to start executing somewhere on reset, the exact memory location is called the reset vector and on RISC-V it is implementation dependent and Renode coordinates the reset vector in its simulator with the memory address of the e_entry header.

Renode changes the reset vector based on the ELF binary

this.Log(LogLevel.Info, "Setting PC value to 0x{0:X}.", elf.GetEntryPoint());
